A-Series · Hurricane aluminum

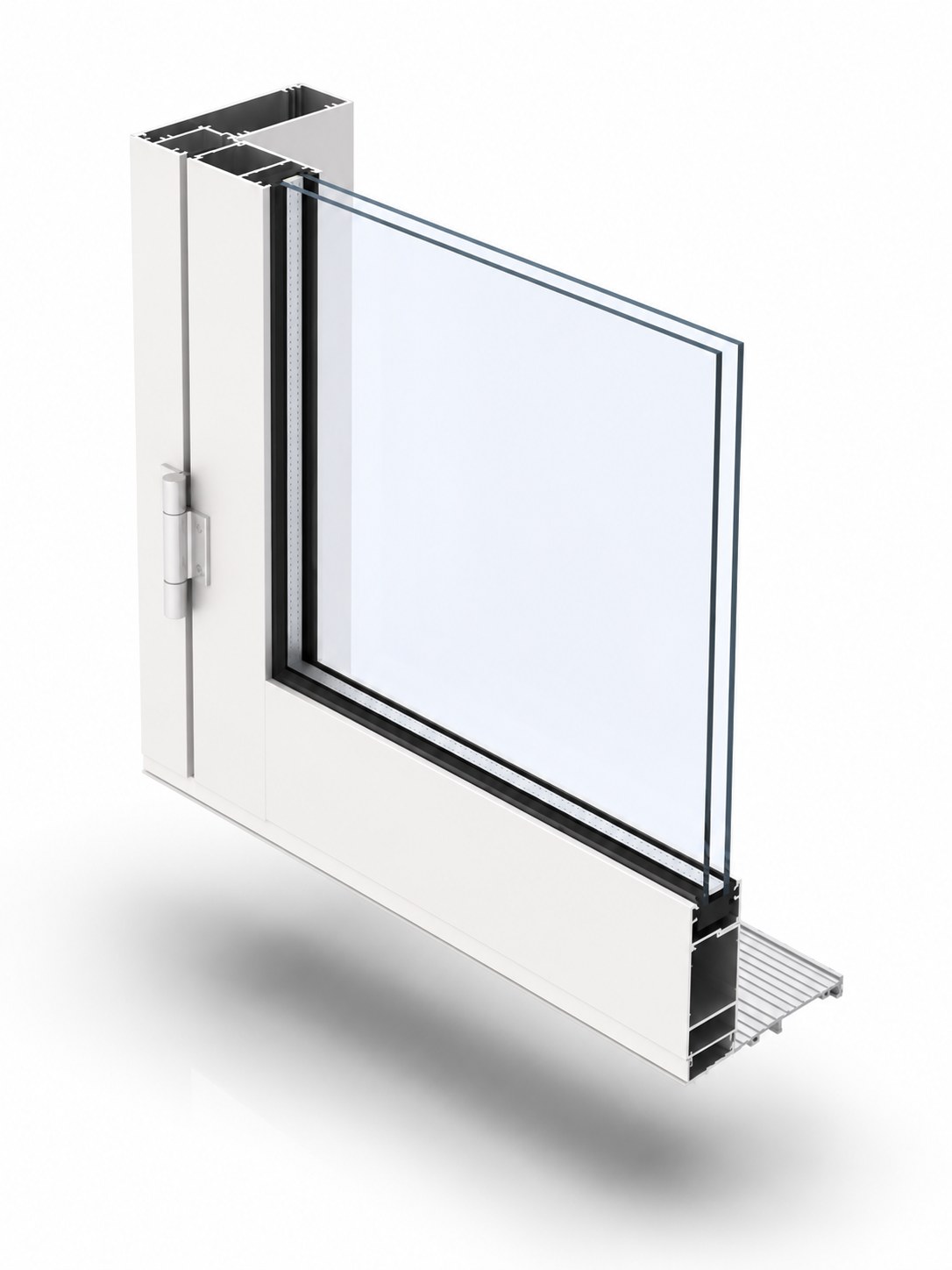

A-150 Impact French Door
A 150 mm outswing impact French door: a pair of glazed leaves with no center post, approved for the High Velocity Hurricane Zone at design pressures to ±96 psf.
Both leaves open for a wide passage to a terrace or balcony, and they swing outward so wind pressure drives them tighter into their seals. The 150 mm section carries large laminated impact panels.
Technical specifications
| System depth | 150 mm |
| Frame material | 6063-T6 aluminum |
| Glass | Laminated impact glass, PVB interlayer; insulating impact glass available |
| Opening | Pair of hinged leaves, outswing |
| Impact | Large missile impact, tested to TAS 201, 202 and 203 Certified |
| Design pressure | ±96 psf Certified |
| Approvals | Florida Product Approval FL41525, design pressure ±96 psf; approved for use inside and outside the High Velocity Hurricane Zone Certified |
Certified values come from the product’s Florida Product Approval and, where noted, its Miami-Dade County Notice of Acceptance. Design pressure is the maximum rated value; the allowable value for a given size is set by the approval drawings.
What is a French door?
A French door is a pair of hinged glazed doors that meet in the middle with no fixed post between them, so both leaves open for a wide, unobstructed passage. Our impact French doors swing outward, the configuration hurricane codes favor because wind pressure pushes the leaves tighter into their seals.
Glass & glazing options
Hardware
Sizes & configurations
Drawings & details
Installation
Downloads & resources
Related A-Series systems

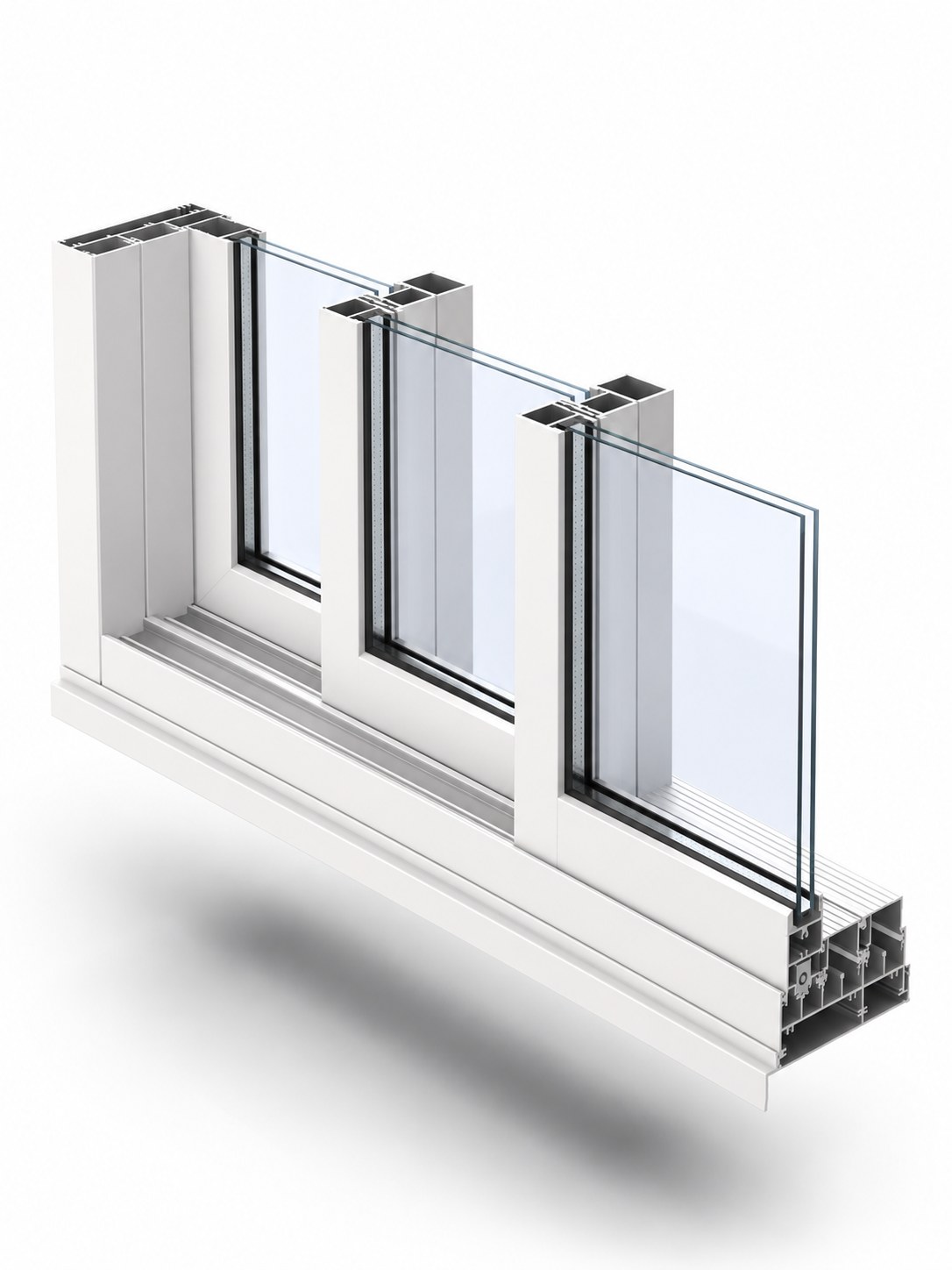

A-100 / A-150 Impact Sliding Door

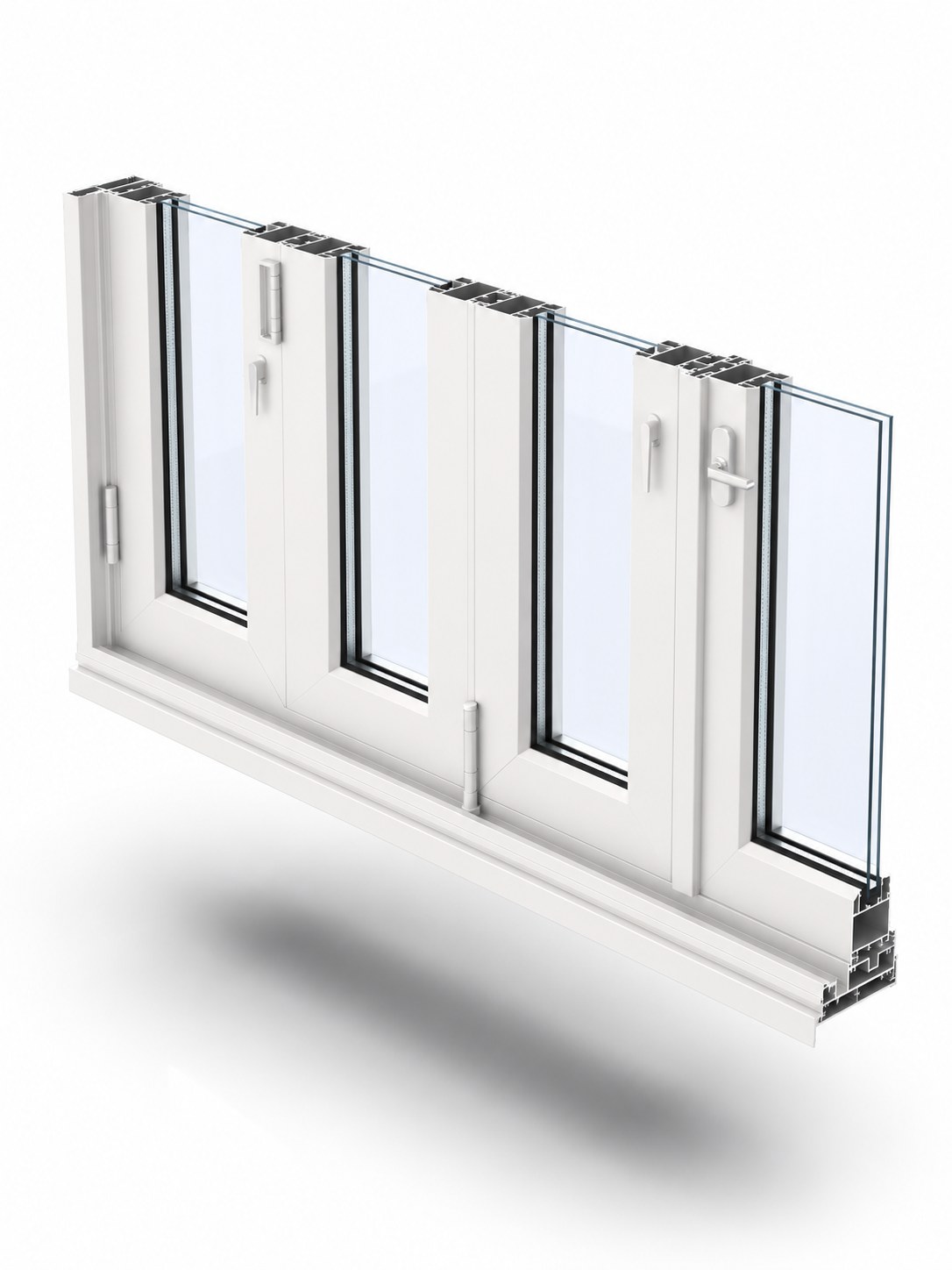

A-115 Impact Bi-Fold Door

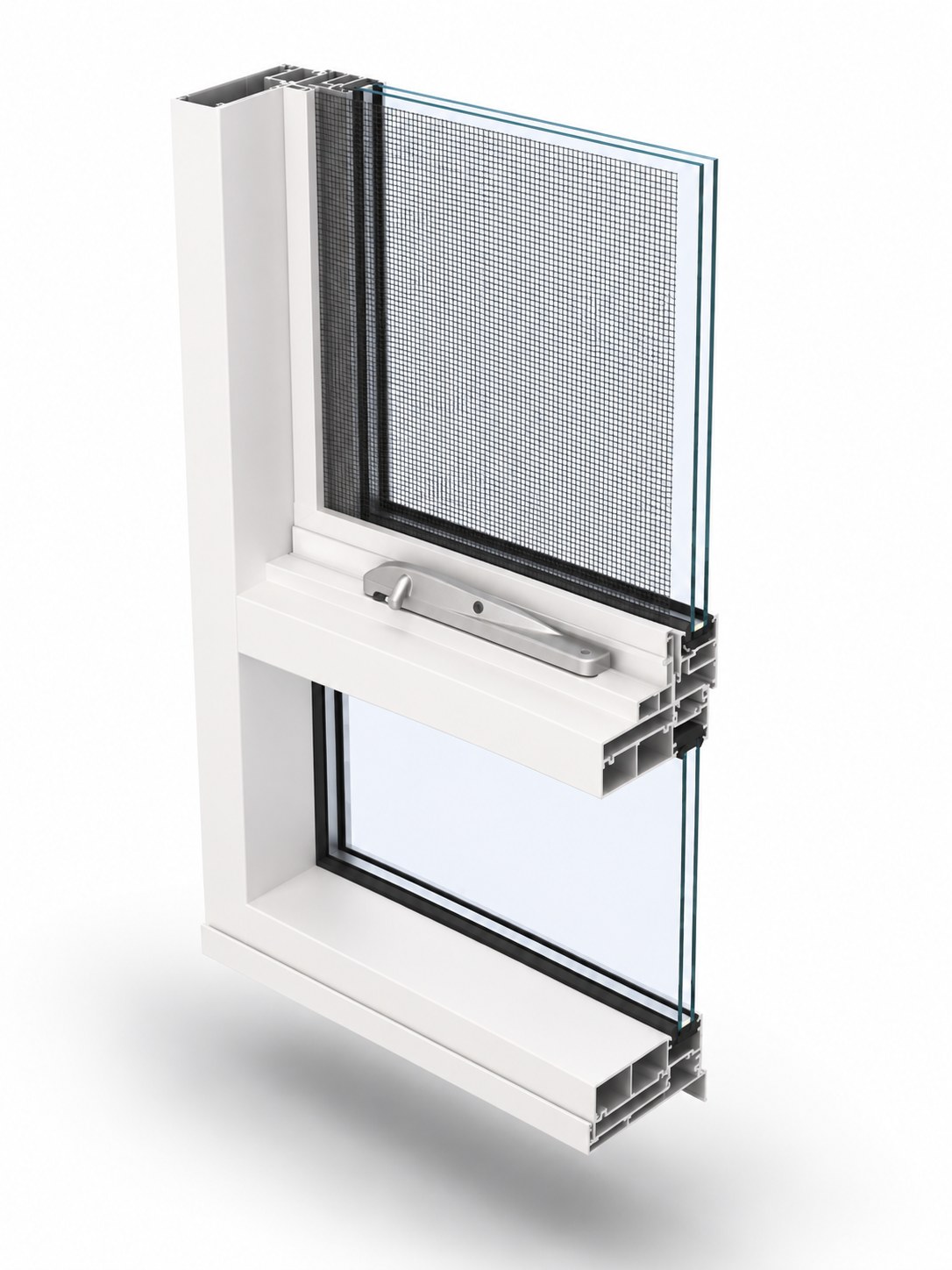

A-60 Impact Casement Window
