A-Series · Hurricane aluminum

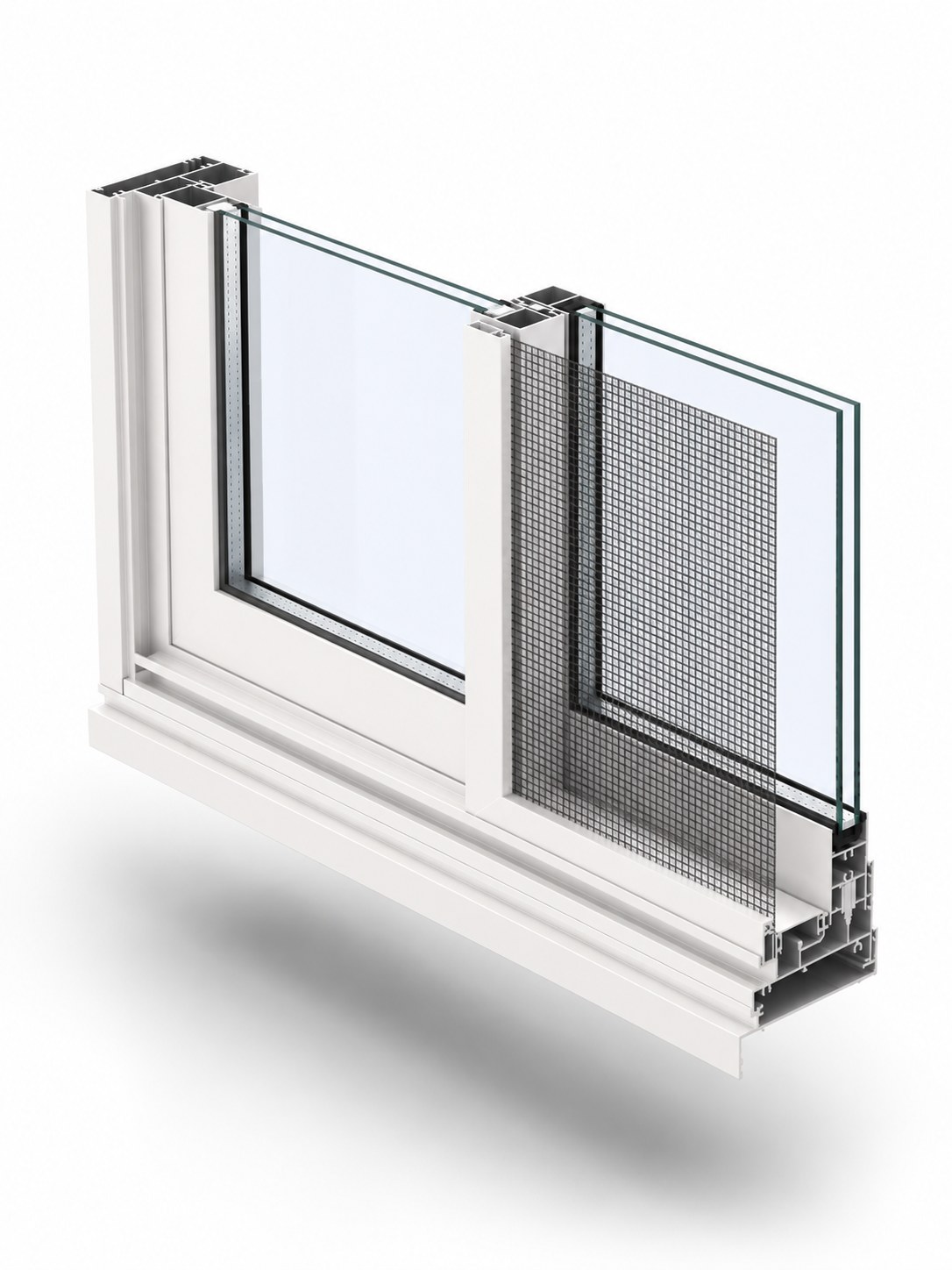

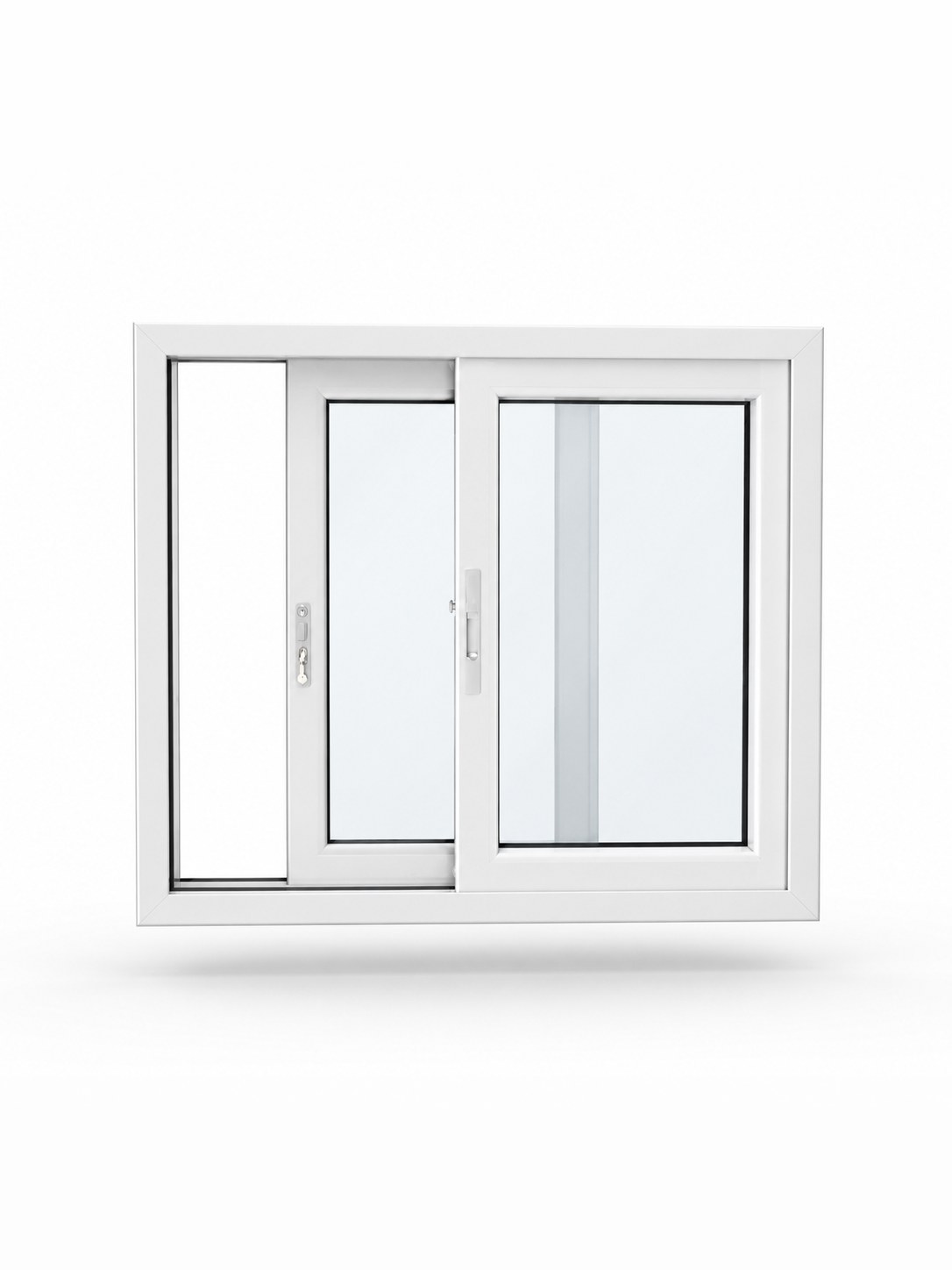

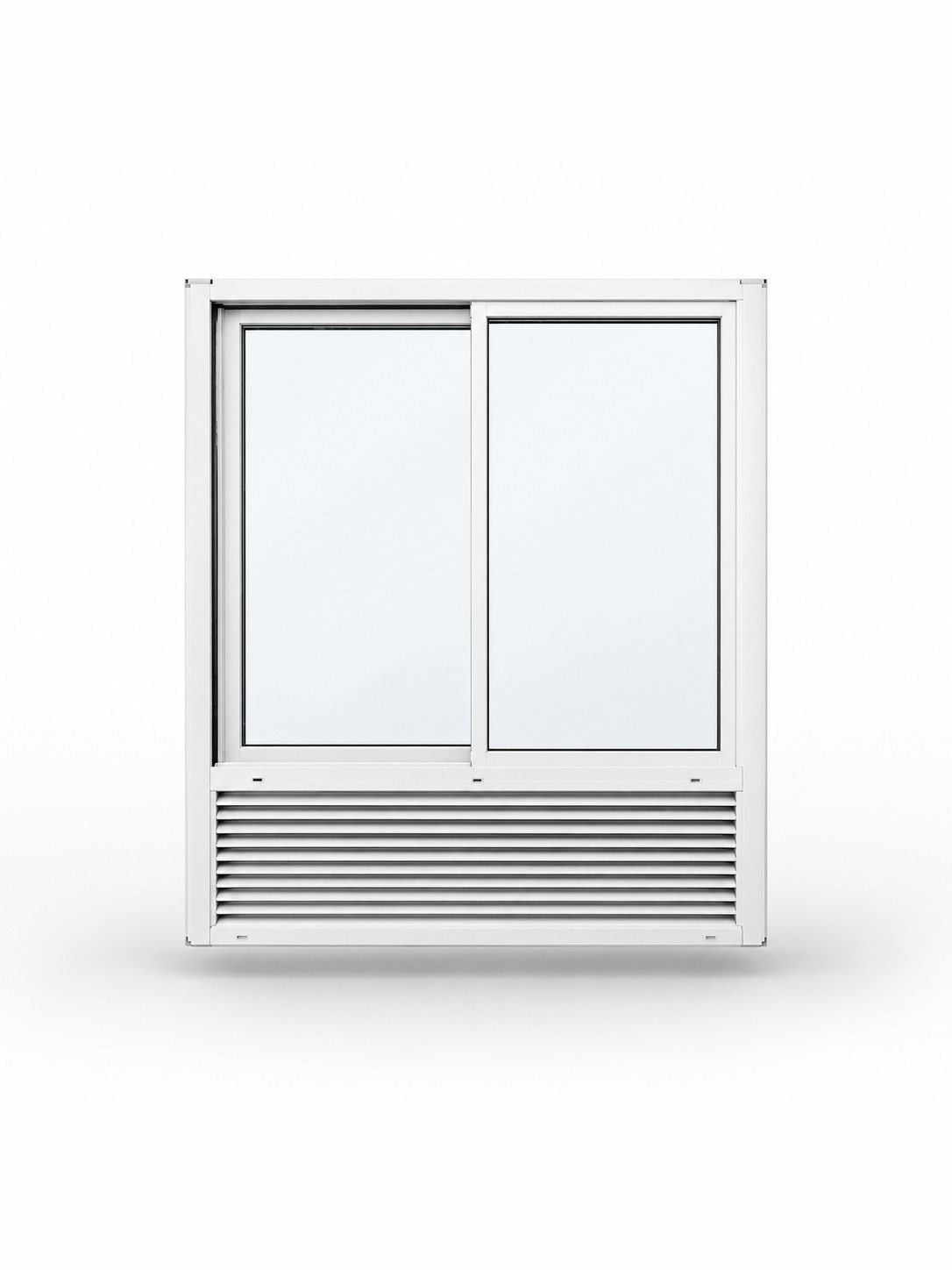

A-100 Impact Sliding Window
A 100 mm horizontal sliding window, impact-rated: one sash glides past the other for ventilation without projecting into a walkway or balcony.
The slider keeps both sashes in plane, so nothing swings out over a walkway. On the 100 mm aluminum profile with laminated impact glass, it meets coastal impact requirements while staying compact.
Technical specifications
| System depth | 100 mm |
| Frame material | 6063-T6 aluminum |
| Glass | Laminated impact glass, PVB interlayer; insulating impact glass available |
| Opening | Horizontal sliding |
| Impact | Large missile impact, tested to TAS 201, 202 and 203 Certified |
| Design pressure | ±55 psf Certified |
| Approvals | Florida Product Approval FL30923, design pressure ±55 psf; approved for use inside and outside the High Velocity Hurricane Zone Certified |
Certified values come from the product’s Florida Product Approval and, where noted, its Miami-Dade County Notice of Acceptance. Design pressure is the maximum rated value; the allowable value for a given size is set by the approval drawings.
What is a sliding window or door?
A sliding window or door runs one or more panels horizontally on a track, one gliding past the next. Because the panels stay in the plane of the wall, a slider opens a wide view and passage without sweeping into the room, which is ideal where floor space is tight. Configurations run from two panels up to multi-panel and pocketing runs that slide away into the wall.
